| Nazwa marki: | DLX |
| Numer modelu: | Przewód termopary typu E |
| MOQ: | 5 |
| Warunki płatności: | L/C, T/T, Western Union |
| Możliwość zaopatrzenia: | 300 ton miesięcznie |

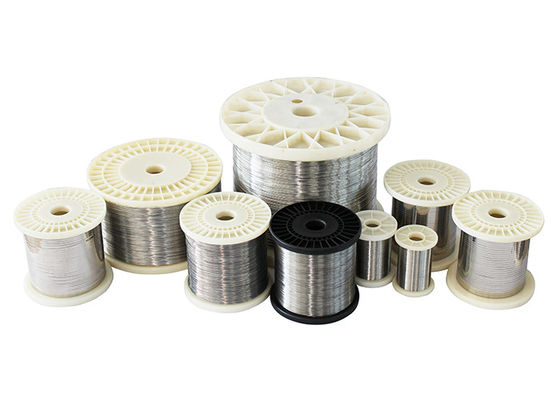

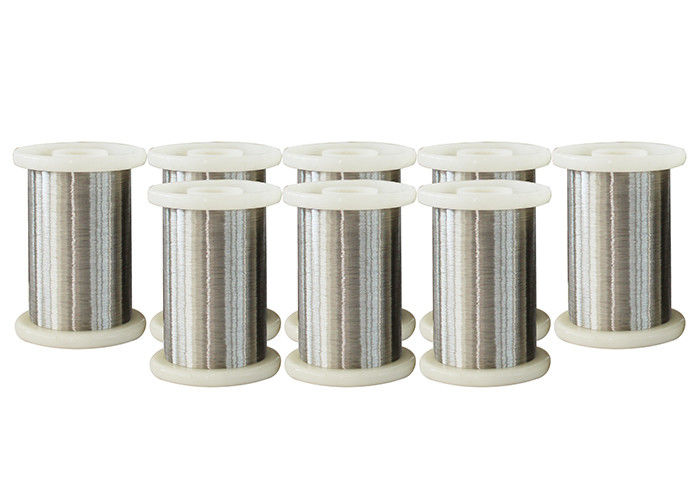

NiCr- CuNi thermocouple wire (type E) is also named NiCr-Constantan thermocouple wire. It has a stronger signal & higher accuracy than the Type K or Type J at moderate temperature ranges of 1,000F and lower. The type E is also more stable than the type K, which adds to its accuracy.
Type E thermocouple has the largest EMF output and highest sensitivity, so it is ideal for measuring small temperature change. It also has good stability in the low temperature range up to 300ºC, and good property of anti-corrosion in humidity atmosphere. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in reducing atmosphere and atmosphere with sulphur gases.
Thermocouple ribbon wire, rods, strips can be supplied according to your request.
Positive leg NiCr (EP) is Ni: Cr≈90:10; negative leg Constantan (EN) isCu: Ni≈ 55%: 45%
Consideration for bare wire type E thermocouple applications:
| Code | Wires component of the thermocouple | |
| +Positive leg | -Negative leg | |
| N | Ni-cr-si (NP) | Ni-si-magnesium (NN) |
| K | Ni-Cr (KP) | Ni-Al(Si) (KN) |
| E | Ni-Cr (EP) | Cu-Ni<constantan> (EN) |
| J | Iron (JP) | Cu-Ni<constantan> (JN) |
| T | Copper (TP) | Cu-Ni<constantan> (TN) |
| B | Platinum Rhodium-30% | Platinum Rhodium-6% |
| R | Platinum Rhodium-13% | Platinum |
| S | Platinum Rhodium-10% | Platinum |
| ASTM | ANSI | IEC | DIN | BS | NF | JIS | GOST |
| (American Society for Testing and Materials) E 230 | (American National Standard Institute) MC 96.1 | (European Standard by the International Electrotechnical Commission 584)-1/2/3 | (Deutsche Industrie Normen) EN 60584 -1/2 | (British Standards) 4937.1041, EN 60584 - 1/2 | (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 | (Japanese Industrial Standards) C 1602 - C 1610 | (Unification of the Russian Specifications) 3044 |
Wire: 0.1 to 8.0 mm.
|
contact us:
email:sales7@dlx-alloy.com
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Product Available Size:
Wires: Diameter0.5~7.5mm
Rods:Diameter8.0~200mm
Strip:Thickness0.5~2.5mm, Width5~180mm
Plate: Customized
Tube: Customized
